EX820v

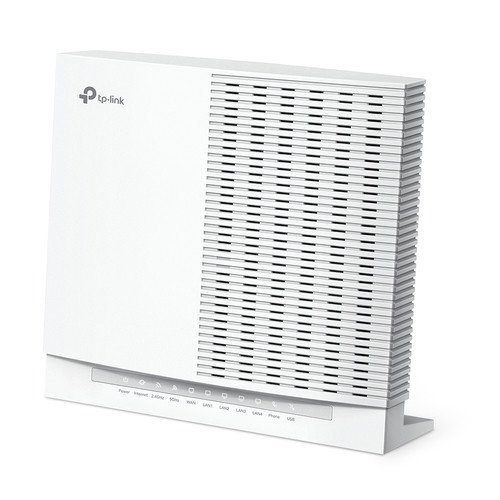

AX6000 Dual Band Wi-Fi 6 VoIP Router
EX820v
- Warp-Speed Wi-Fi: Up to 6 Gbps dual band Wi-Fi enables faster browsing, streaming, and downloading—all at the same time.*
- Multi-Gig Connections: Break through the 1 Gbps bottleneck with a 2.5G WAN port and 2.5G LAN port for faster internet access and wired connections.△ ‡
- Superior Coverage: High-performance antennas and Beamforming technology combine to extend strong, reliable WiFi throughout your home.
- More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.**
- EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology. §†
- VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.
- Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls provide personalized and safer online experience.
- Easy Setup: Set up your network in minutes with the powerful Aginet app.
- Remote Management: TAUC (TP-Link Aginet Unified Cloud, based on TR-369), and TR-069, TR-098, TR-181, TR-111, TR-143 protocols are supported.
| HARDWARE FEATURES | |
|---|---|
| External Power Supply | 12V/2.5A |
| Interface | 1× 10/100/1000/2500 Mbps RJ45 WAN Port 1× 10/100/1000/2500 Mbps RJ45 LAN Port 3× 10/100/1000 Mbps RJ45 LAN Ports 2× Phone Ports 1× USB 3.0 Port |
| Button | Power On/Off Button, Reset Button, WPS/Wi-Fi Button |
| Antenna | Internal Antennas |
| Dimensions ( W x D x H ) | 8.5 × 7.0 × 2.9 in (214.9 ×178.2 × 73.3 mm) |
| WIRELESS FEATURES | |
|---|---|
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 4804Mbps 2.4 GHz: Up to 1148 Mbps* |
| Transmit Power | CE: <20 dBm (2.4 GHz); <23 dBm (5.15 GHz–5.35 GHz); <30 dBm (5.47 GHz–5.725 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Air Time Fairness, Wireless Statistics, MAC Filtering |
| Wireless Security | WPA/WPA2/WPA3 encryptions |
| Wireless Standards | IEEE 802.11 ax/ac/n/a 5 GHz IEEE 802.11 ax/b/g/n 2.4 GHz |
| Multi-SSID | 2× 5 GHz Multi-SSID 2× 2.4 GHz Multi-SSID |
| Wireless Schedule | Support 2.4 GHz and 5 GHz Wireless Schedule |
| Mesh Technology | EasyMesh Compatible, and support 802.11k/v/r |
| SOFTWARE FEATURES | |
|---|---|
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP(Multi-EWAN) |
| DHCP | DHCP Client, DHCP Server, DHCP Relay, Address Reservation, Condition Pool |
| Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | NO-IP, DynDNS |
| Management | Local management: WebGUI, Aginet app (for end users) Remote management: Aginet ACS, TR-069, TR-181, TR-369, TR-111,TR-143 for service providers Aginet APP for end user (need to log in wtih TP-Link ID and bind your device to it) Cloud management: TP-Link Aginet Unified Cloud (TAUC) |
| Security | IPv4/IPv6 SPI Firewall, DDoS, Service Filtering, Access Control, IP&MAC Binding |
| Advanced Functions | VoIP, Parental Controls, Firewall, Address Reservation, QoS (Quality of Service), CWMP, Network Diagnosis, Traffic Statistics,1024-QAM, MU-MIMO, OFDMA, Cloud upgrade |
| Protocols | IPv4 and IPv6 |
| USB Sharing | Samba, FTP, Media Server |
| Operating Modes | Router Mode |
| Guest Network | 2.4 GHz and 5 GHz Guest Network |
| VPN | PPTP, IPSec, OpenVPN |
| OTHERS | |
|---|---|
| Certification | CE, DFS |
| Package Contents | 1× Wi-Fi 6 VoIP Router EX820v 1× Power Adapter 1× RJ45 Ethernet Cable 2× RJ11 Cables 1× Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0°C40°C (32°F—104°F) Storage Temperature: -40°C—60°C (-40°F—140°F) Operating Humidity: 10%—90% non-condensing Storage Humidity: 5%—90% non-condensing |
