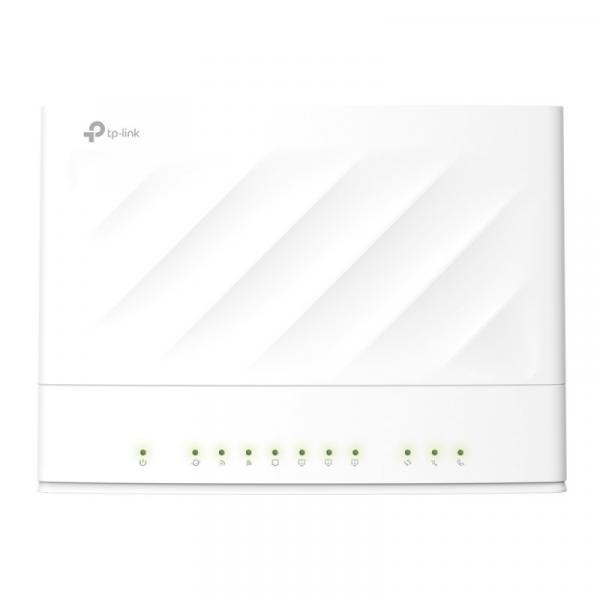

VX230v

AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router

Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with WiFi speeds of 1.8 Gbps.(1201 Mbps on 5 GHz band and 574 Mbps on 2.4 GHz band).*
Connect More Devices: WiFi 6 technology let you connect more devices with revolutionary combination of OFDMA, MU-MIMO, and Beamforming technologies while simultaneously reducing lag.**
Super VDSL: The latest super VDSL (VDSL2 Profile 35b) technology delivers internet speeds of up to 350 Mbps, while G.vector technology ensures advanced data transmission stability.
Versatile Connectivity: Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, support Fiber and Cable connection through Ethernet port, as well as 3G/4G internet services through USB port.
EasyMesh Compatible: Provides whole-of-home WiFi coverage with standard mesh technology.
VoIP Support: Support multiple VoIP accounts and various call features to surpass traditional landlines.
Easy Setup and Use: Set up your network in minutes with the powerful Aginet app.
Remote Management: Support TR-069/TR-098, TR-181, TR-111, TR-104, TR-143, and TAUC for centralized management by Internet Service Providers.

WIRELESS FEATURES
Transmit Power	CE: <20 dBm (2.4 GHz), <23 dBm (5.15 GHz~5.35 GHz) <30 dBm (5.47 GHz—5.725 GHz)
Wireless Functions	Enable/Disable Wireless Radio, WMM, Air Time Fairness, Wireless Statistics, MAC Filtering
Wireless Security	WPA/WPA2/WPA3 encryptions
Wireless Schedule	Support 2.4 GHz and 5 GHz Wireless Schedule
Mesh Technology	EasyMesh Compatible, and support 802.11k/v/r
Frequency	2.4 GHz and 5 GHz
Signal Rate	5 GHz: 1201 Mbps 2.4 GHz: 574 Mbps*

SOFTWARE FEATURES
DHCP	Server, Client, DHCP Client List, Address Reservation, DHCP Relay, Condition Pool
Port Forwarding	Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS	Dyn DNS, NO-IP, TP-Link DNS
Management	Local management: WebGUI management, Aginet app management Remote management: TR-069, TR-098, TR-181, TR-369, TR-111,TR-143 Cloud management: TP-Link Aginet Unified Cloud (TAUC)
Security	IPv4/IPv6 SPI Firewall, DDoS, Service Filtering, Access Control, IP&MAC Binding
Advanced Functions	NAT Forwarding, Address Reservation, QoS(Quality of Service), CWMP, Network Diagnosis, Traffic Statistic, Cloud upgrade, 1024-QAM, MU-MIMO, OFDMA, EasyMesh
ATM Features	ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Protocols	IPv4 and IPv6
USB Sharing	Support Samba (Storage) / FTP Server / Media Server, 3G/4G Modem
IPSec VPN	Support up to 16 IPSec VPN tunnels
Guest Network	2.4 GHz and 5 GHz Guest Network
VPN	OpenVPN, PPTP VPN, IPSec VPN

OTHERS
Certification	CE
Package Contents	Modem Router VX230v RJ45 Ethernet Cable Power Adapter RJ11 Cable Splitter Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled brower
Environment	Operating Temperature: 0°C40°C (32°F—104°F) Storage Temperature: -40°C—60°C (-40°F—140°F) Operating Humidity: 10%—90% non-condensing Storage Humidity: 5%—90% non-condensing

HARDWARE FEATURES
IEEE Standards	IEEE 802.3, IEEE 802.3u, 802.3ab
ADSL Standards	Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1
Wireless Standards	IEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/b/g/n 2.4 GHz
ADSL2 Standards	ITU-T G.992.3 (G.DMT.bis) ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards	ITU-T G.992.5
VDSL2 Standards	ITU G.993.2, Up to 35b profile ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP)
External Power Supply	12V/2.0A
Interface	3× 10/100/1000 Mbps RJ45 LAN Ports 1× 10/100/1000Mbps RJ45 WAN Port 1× DSL Port 1× FXS Port 1× USB 2.0 Port
Button	Power On/Off Button, Reset Button, WPS On/Off Button, Wi-Fi On/Off Button
Dimensions ( W x D x H )	7.9 × 5.9 × 2.7 in (199.7 x 148.6 x 67.5 mm)
